Project Description

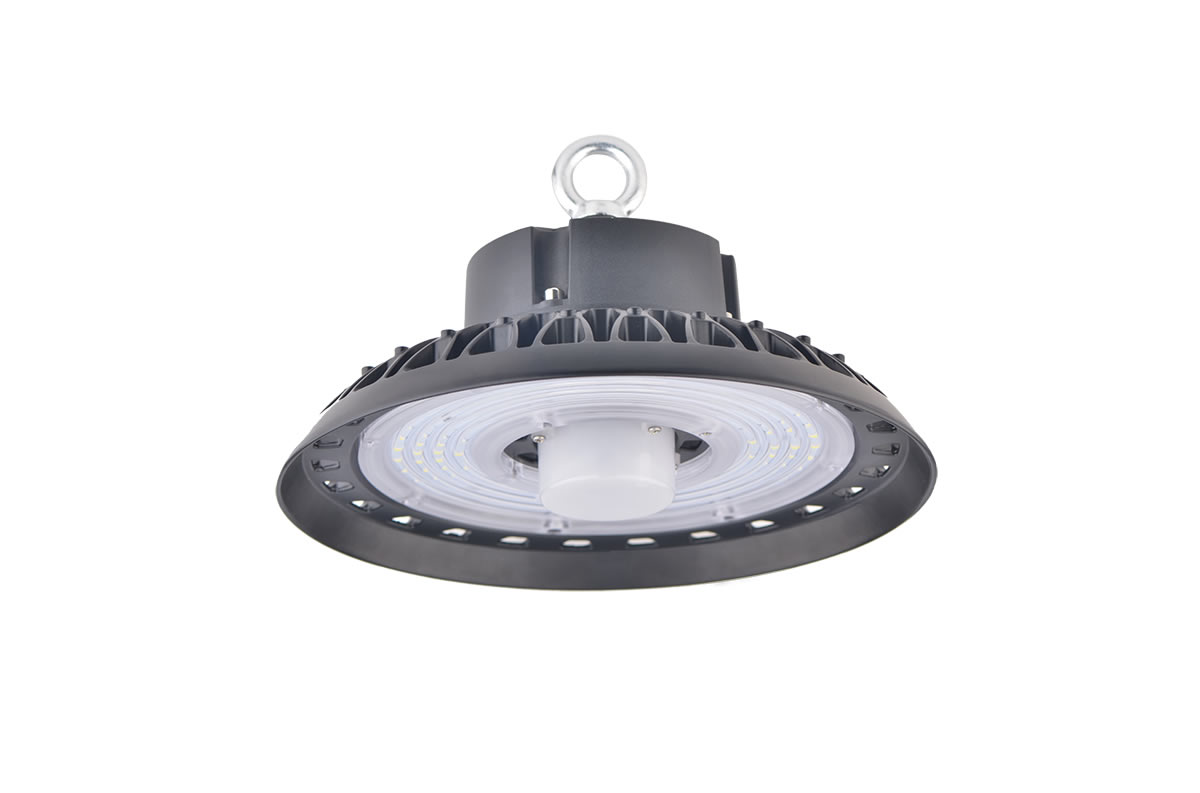

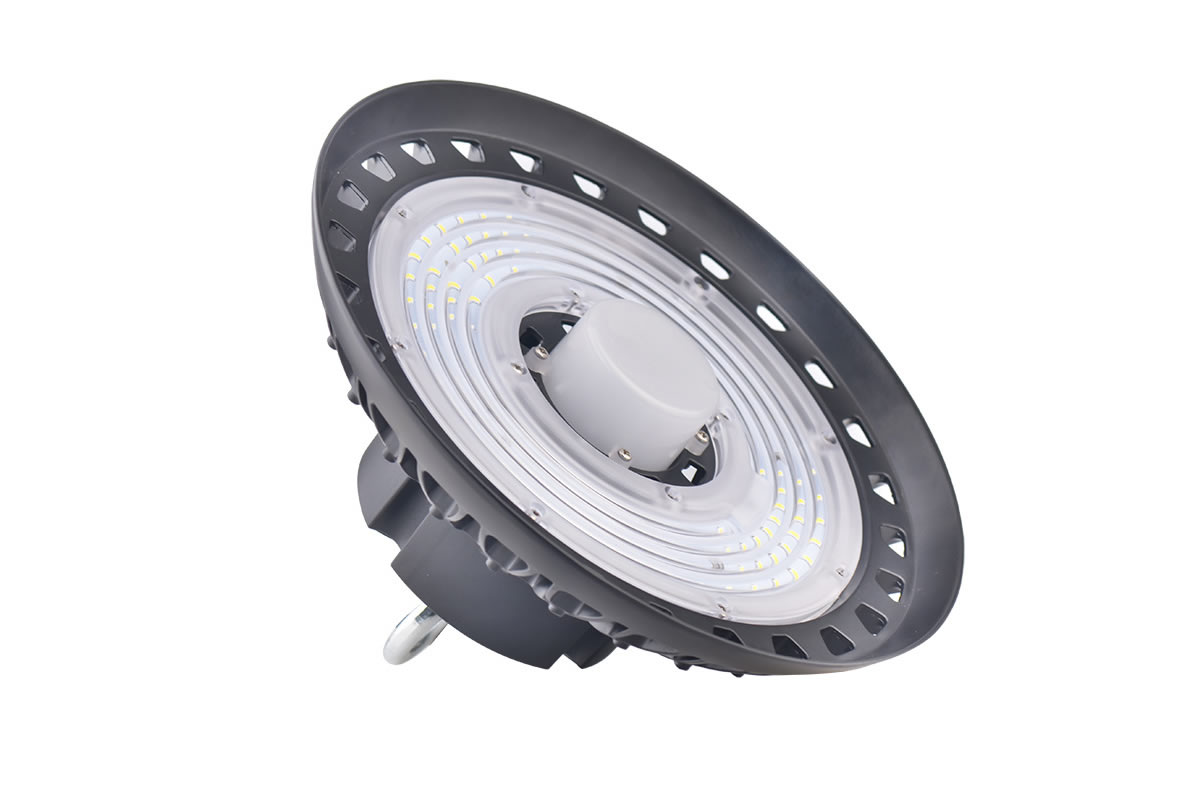

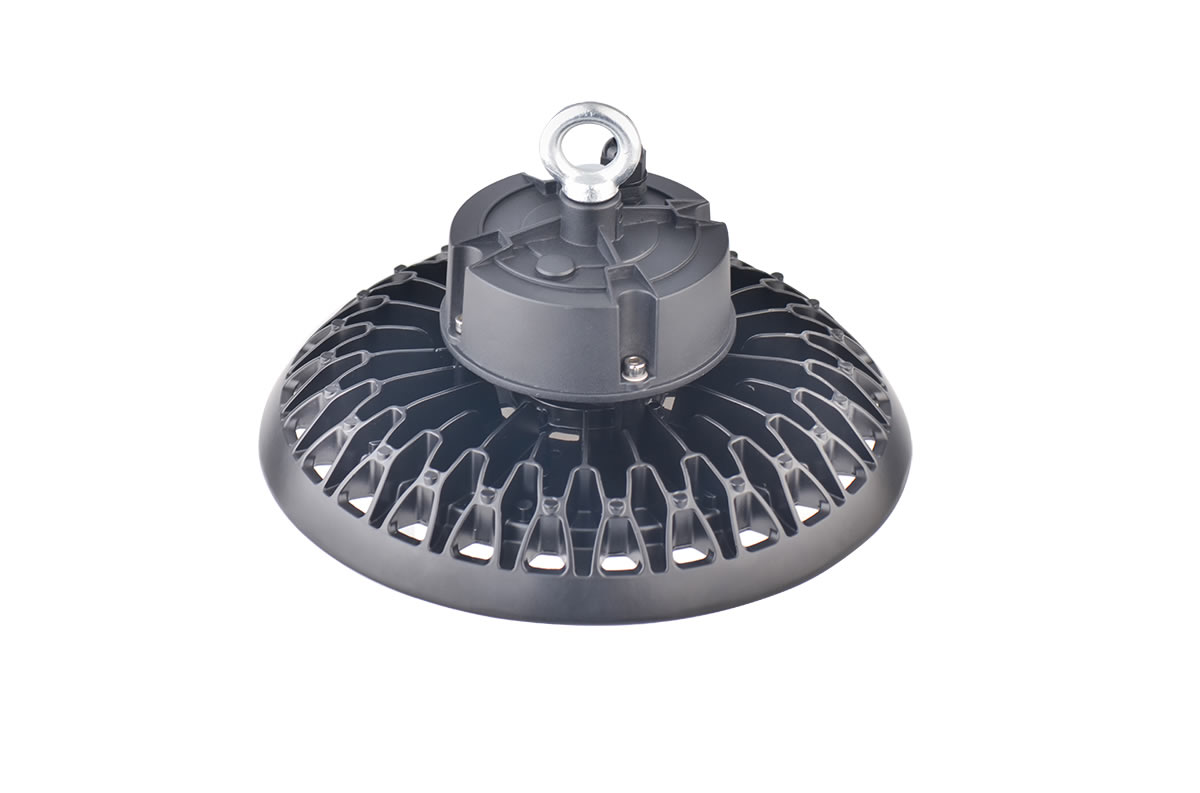

Product Code: CERES 100W UFO LED High Bay | HB-A100W

Key Features

  • Integrated design, the Microwave Sensor is built-in the fixture
  • Daylight & Motion Sensor, 5.8GHz with Remote Controller
  • Integrated die-casting aluminum housing, powder painting agaist harsh environments, and will not change the color.
  • The cover adopts high-permeability PC material, good light transmission, weather resistance and high light transmittance.
  • 0-10V, DALI, PMW, Wireless remote control function available
  • Support square, round driver, more options
  • Waterproof IP65

Product Description

CERES UFO Highbay is equipped with Doppler technology, and can be designed in other circuit in order to realize the microwave sensor function, then helps to catch tiny actions. It can be hidden in the lights made from various non-metal materials without damaging the exterior of the lighting and the lights can turn on or off automatically based on your setting, This advantage helps to upgrade the traditional light into digital light to achieve the purpose of operation convenience and energy saving.

CERES UFO style is the latest in LED technology. Smaller, longer lasting and more efficient. Only 340mm in diameter, the new design is more compact without sacrificing performance. Preinstalled Hook makes installation easy. Simple replacement for existing lights or for new installation. Product Weight 4.3KG for easy handling. Stop replacing old Metal Halide, HID or CFL bulbs with the new UFO High Bay LED light.

It has an innovative center tube that is open for improved cooling and motion sensor. The Premium motion sensor will automatically detect motion and turn on. After 10 minutes it will begin to dim down to off. Use of the motion sensor eliminates the dimming capability (motion uses dimming wires)

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 15000lm OSRAM SMD2835 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Lifud Constant Current >0.97 100-277V AC

Operating Details

Power Ambient Temperature Range
100W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 60° / 90° / 130°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 38 x 38 x 19 cm 2.5 kg

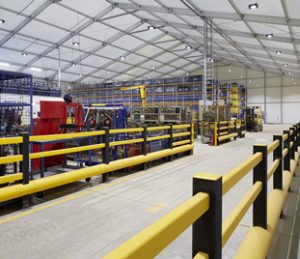

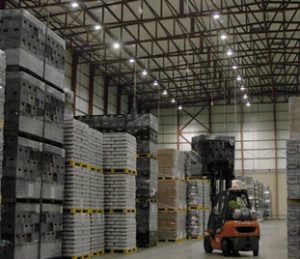

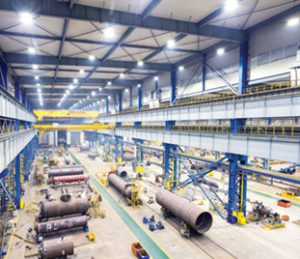

Applications

Mechanical Dimensions (Unit mm)

size-motion-sensor-Dimmable-UFO-Highbay-Industrial

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
