Project Description

Product Code: MARS 40W 600X600MM LED Panel | SPL-66M40W

Key Features

  • Pure alu. frame, good heat dissipation, high-grade appearance
  • Good light guide plate, light rate is 80% above
  • The light even effect and no dark area
  • Stable performance with isolated driver
  • DALI/0-10V/PWM/Triac Dimming available
  • Well distributed light using a patented reflecting system
  • Ideal for commercial or Traditional Grille lamp Replacement

Product Description

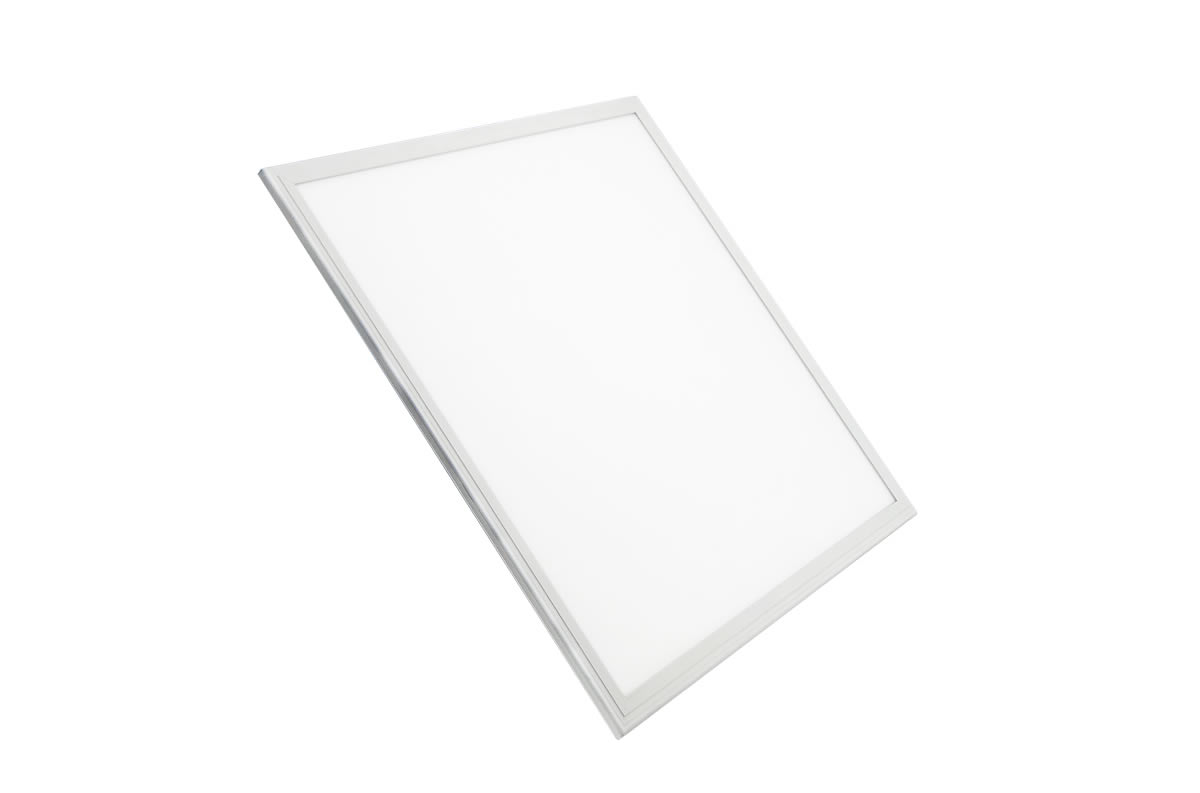

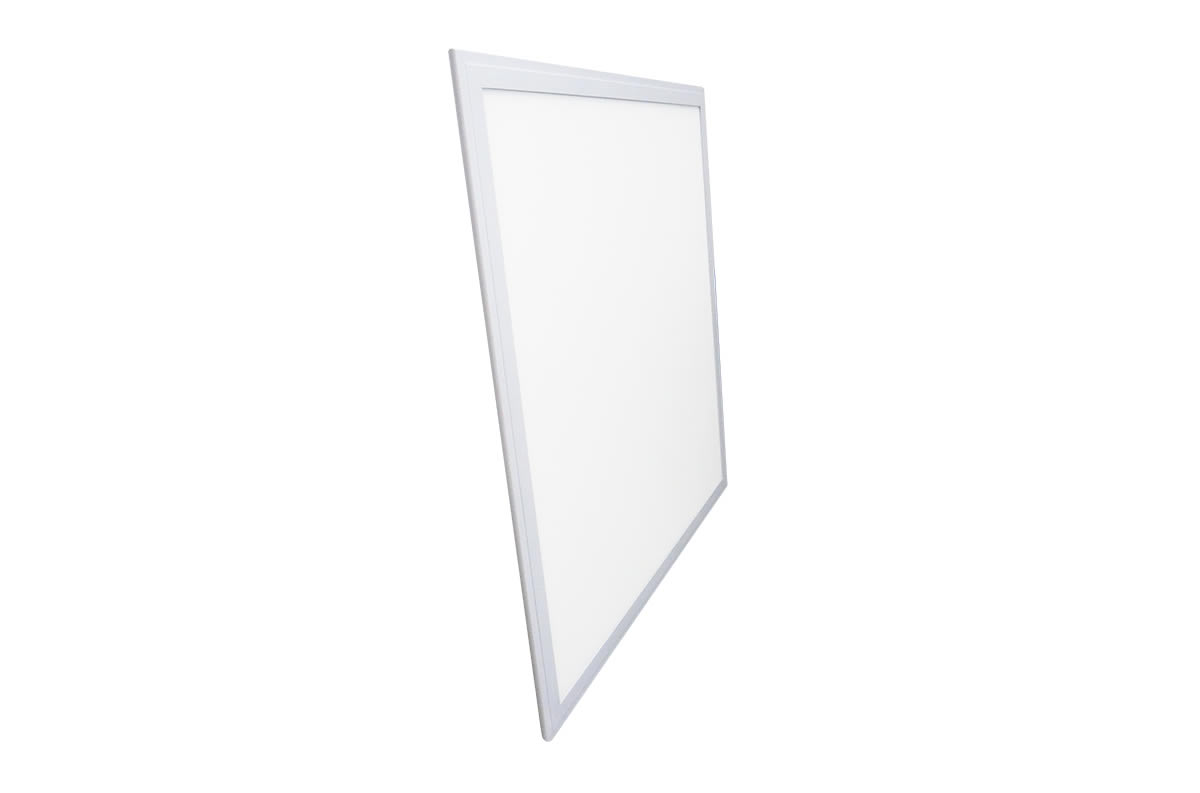

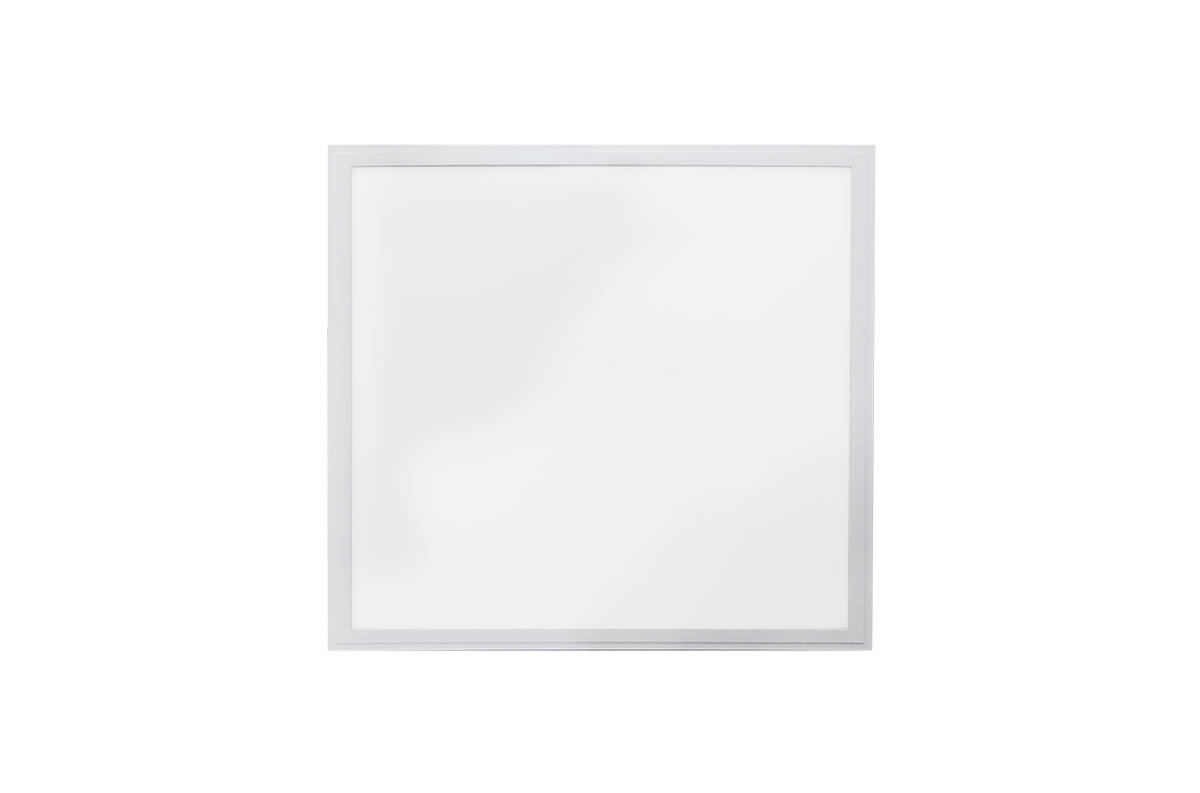

The MARS LED panel light is an exceptionally high performance retrofit type LED light.

AYANIE Lighting range of LED panels uses side lighting LED technology which gives them an elegant and slim profile. They can be quickly and easily installed, hanging or recessed, and can even in be used in smaller void suspended ceilings. Perfect for use in working environments that need good light, our MARS LED panels provide a high brightness and even light output that is equivalent to standard fluorescents, but with no flicker, so eye strain is greatly reduced.

Coupled with power corrected drivers, AYANIE LED panels consume a fraction of the energy of fluorescents (including ballasts), which reduces costs still further, and as they contain no harmful mercury, disposal is easier and safer and so LED panels are altogether more environmentally friendly than fluorescent options. Emergency Backup options available.

Specification

Lighting Performance

Colour Temperature Lumen Output LED Quantity CRI Minimum Lifetime
3000K, 4000K, 6000K 4000lm 216pcs >80 50,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Lifud Constant Current >0.9 220-240V AC

Operating Details

Power Ambient Temperature Range
40W -20 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC White, Silver IP20

Options

Single LED Colours Optics
Warm White, Neutral White, Cold White 120°

Packing Details

Quantity Per Carton Carton Size Carton Weight
6 pcs 70 x 27 x 75 cm 21.5 kg

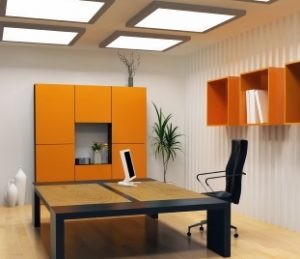

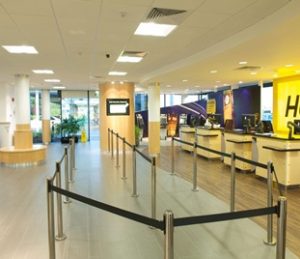

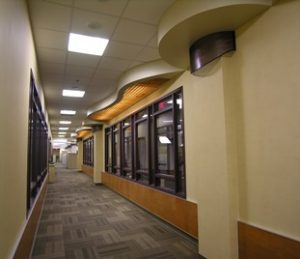

Applications

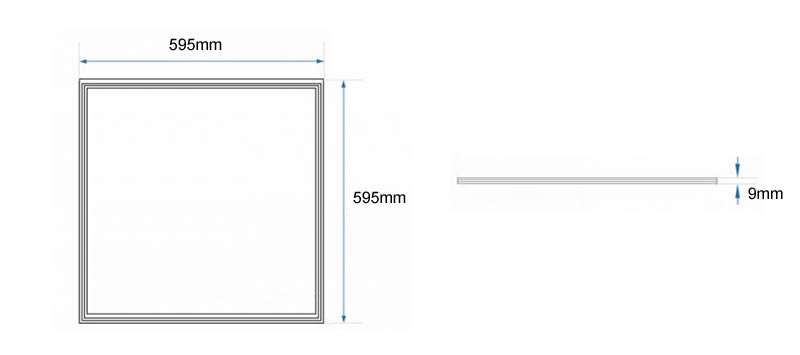

Mechanical Dimensions (Unit mm)

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
