Project Description
Product Code: VEGA 40W 1200X300 MM LED Panel | SPL-123G40W
Key Features
Key Features
- Modular design fit all European ceiling grid with different frames.
- Less inventory risk, faster time to projects.
- Glare free: UGR<16, luminance limits @65°<1000cd/m.
- More useful light: over 90% useful lumen in cone 90°.
- Flicker free, Class II, Isolated driver.
- Characteristic Louver Reflector design technology.
- Ideal for both commercial or general lighting purposes
Product Description
Product Description

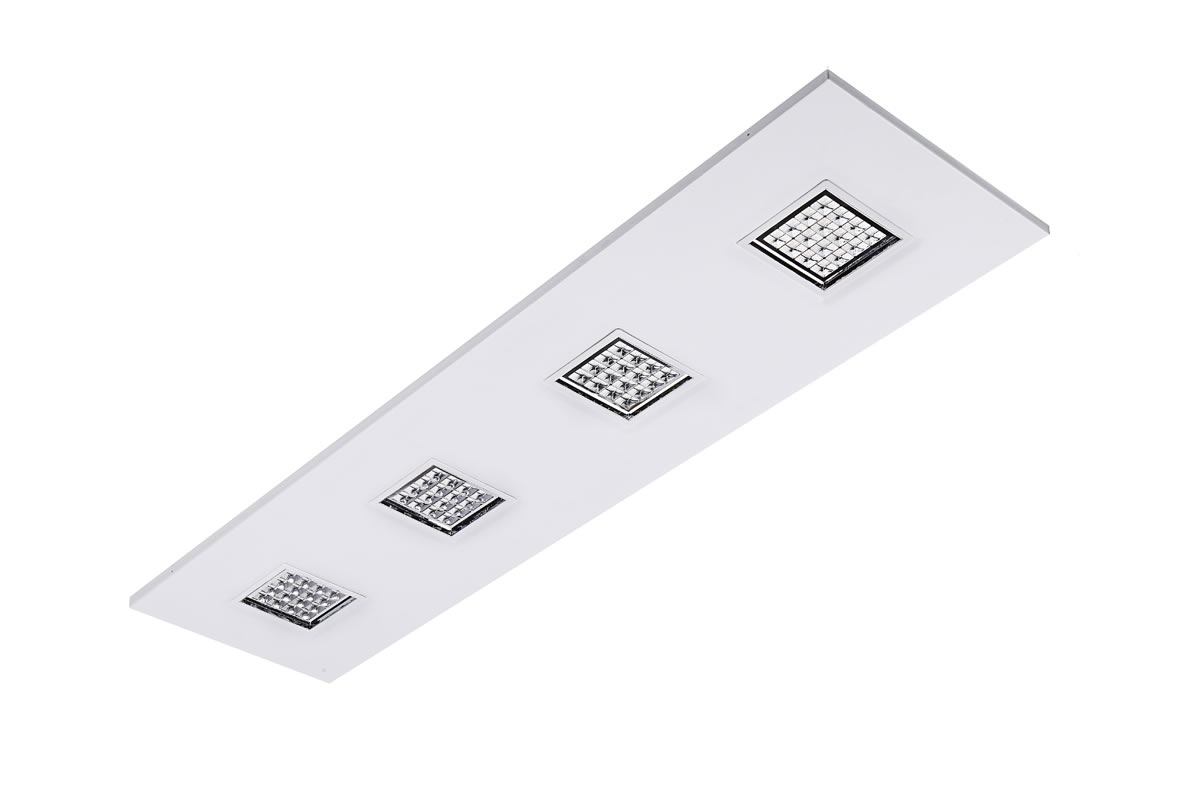

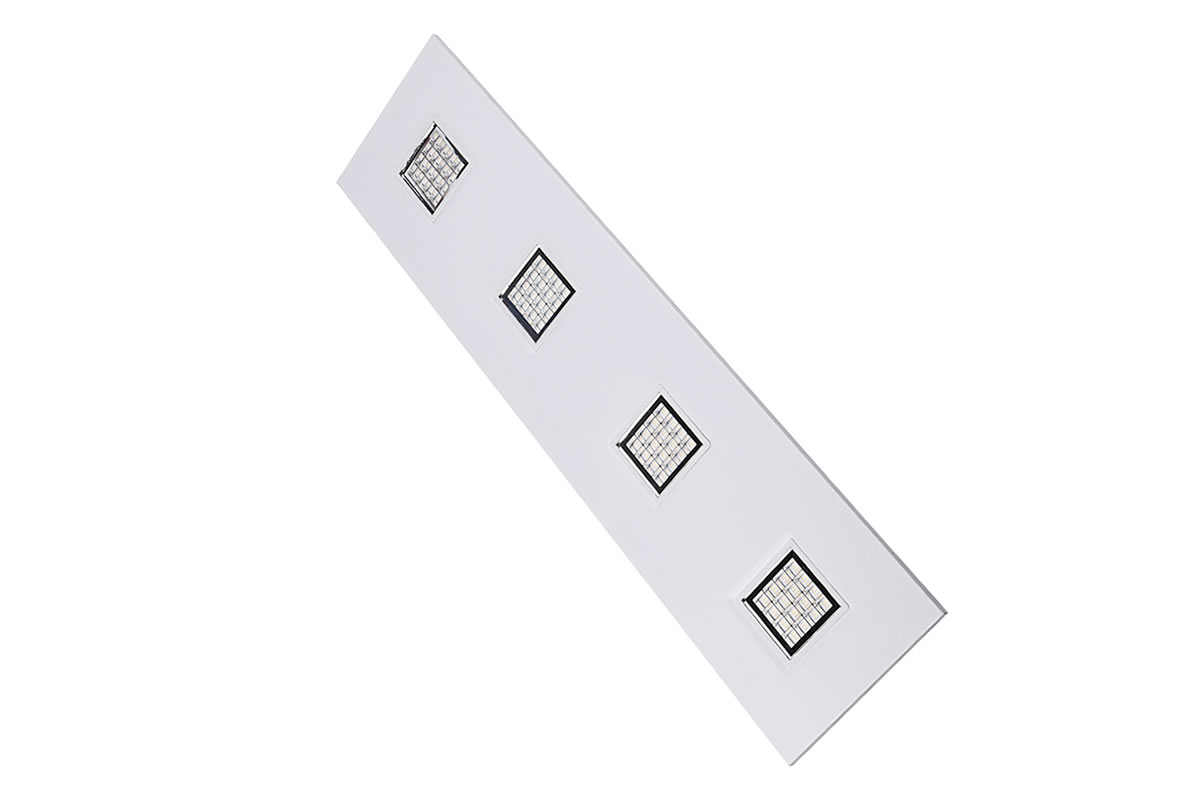

With Characteristic Louver Reflector design technology, The VEGA LED panel light is an exceptionally high performance retrofit type LED light
Design for general lighting in a complete modular system, the VEGA Panel Light aims to save your inventory and cash flow and reduce the lead time for projects. Thanks to the detachable modular design, you can easy customized different size of frame(such as 595*595, 620*620, 295*1195…), it can be recessed / pendant / surface mounted (depends on frame or Accessories). It provides beautiful light distribution with low glare light(UGR<16 @ 4H*8H,less than 1000cd/m2 for 65-90 degree) . It is widely used in office, store, schools, hospital and so on. Nearly 60% energy saving compare to fluorescent T5 thanks to the high efficacy nearly 150lm per watt. 5-step(standard) MacAdam ellipses offer high quality light.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED Quantity | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 6200lm | 384pcs | >80 | 50,000hrs |
N.B Lumen values quoted on Cold White (6000K)
Input Data
Drive Current | Power Supply Type | Power Factor | Input Voltage |
---|---|---|---|
1050mA | Constant Current | >0.9 | 30-40V DC |
Operating Details
Power | Ambient Temperature Range |
---|---|
40W | -20 to +50 °C |
Physical Details
Weight | Finish | Ingress Protection |
---|---|---|
3250g (±10g) | White, Black | IP20 |
Options
LED Colour | UGR | Optics |
---|---|---|
Warm White, Neutral White, Cold White | <16 | 85×70° |
Bundled Driver Specification
Input | Output Current | Output Voltage |
---|---|---|
220-240V AC | 1050mA | 30-40V DC |

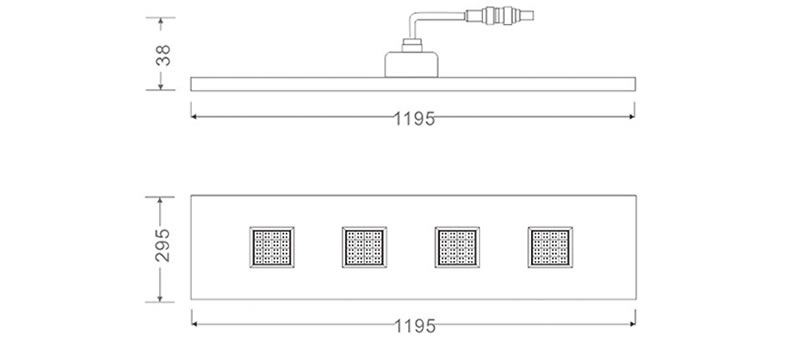

Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
