Project Description

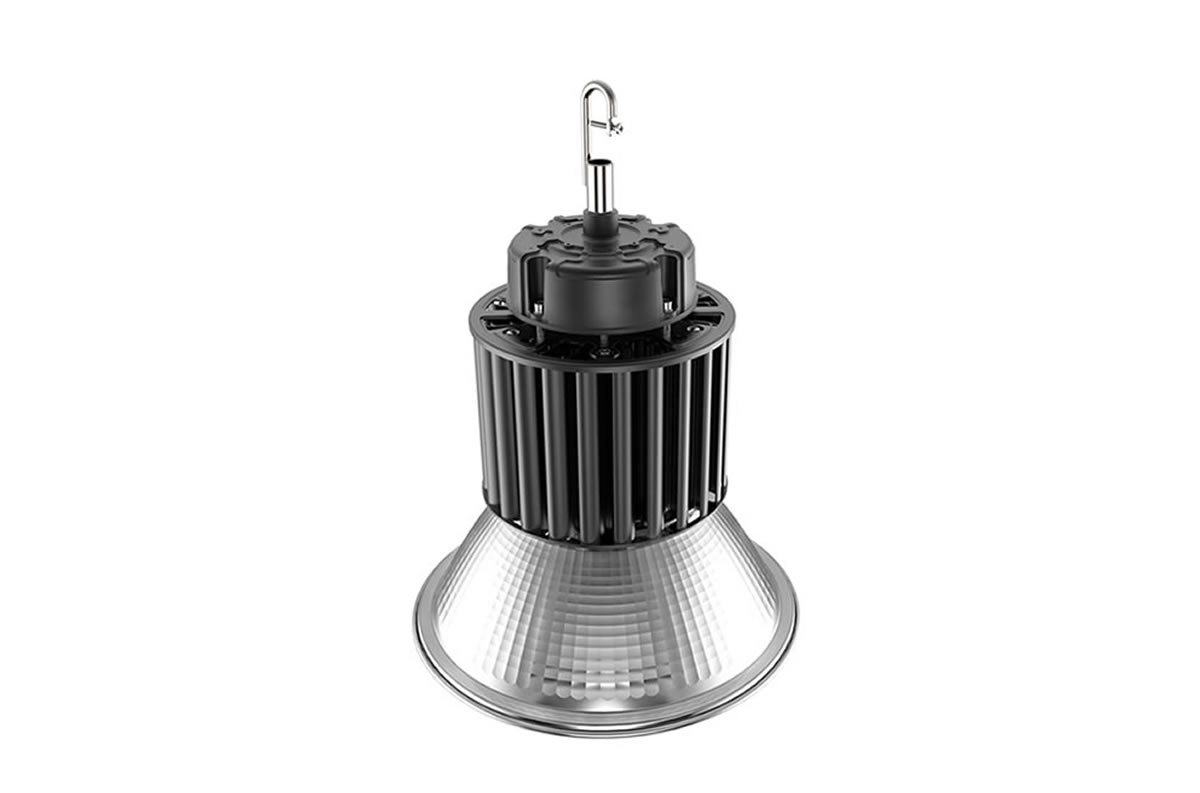

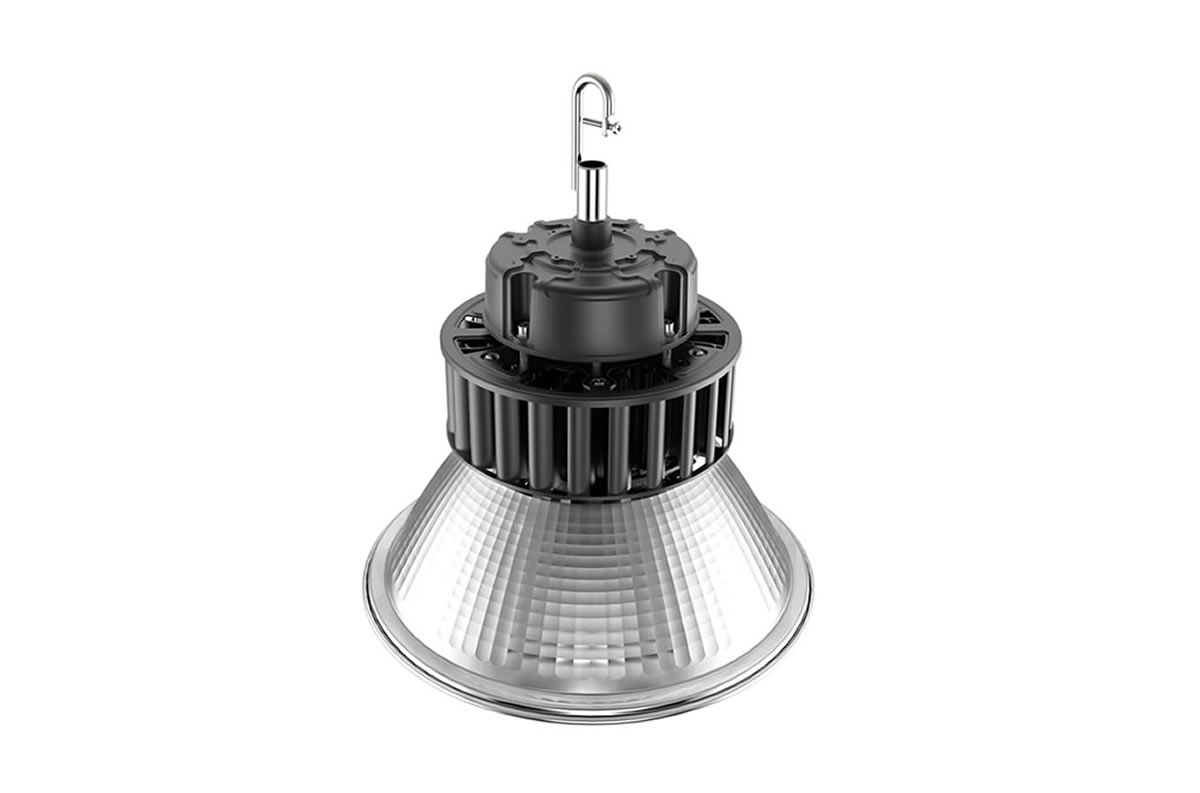

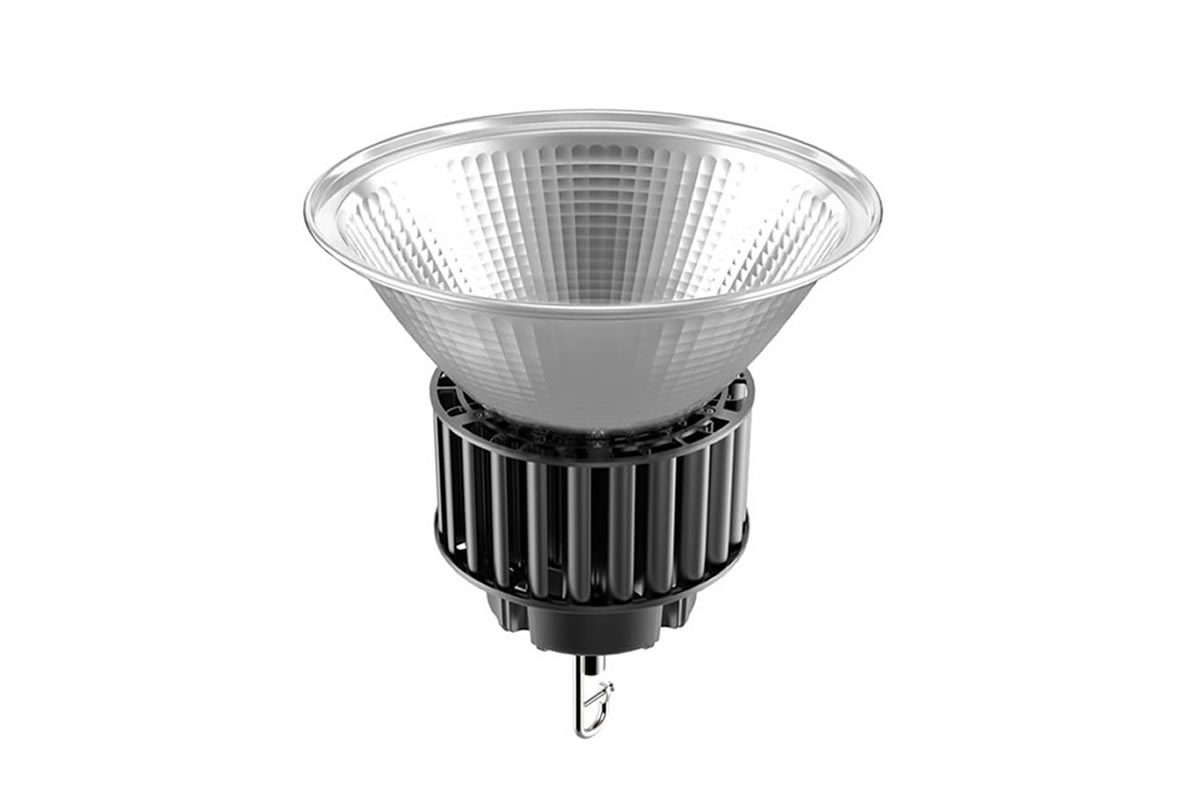

Product Code: HAUMEA 100W UFO LED High Bay | HB-R100W

Key Features

  • Copper heatpipe technology
  • Elegant design, excellent finish
  • High performance heat sink
  • Pure aluminum reflector, PC reflector available
  • 50,000 hours lifespan, maintenance free
  • No ultraviolet(UV) or infrared(IR) rays
  • Quality Meanwell Driver

Product Description

HAUMEA LED High Bay Lights are designed to provide reflective and effective solution to illuminate space with different installation situation,there’er 5 power selections,4 different installation methods and 2 reflectors with different beam angles that can easily meet any possible installation conditions.

Fixed by rotatory buckle,easily installed without tools, The reflector could be disassembled and transported separately, with small size heaksink, able to reduce at least 50% of the freight charges under the same conditions. Two types cover option, Frosted & transparent PC cover, with high light transmittance,good flame-retardance, wear-resistance and oxidation resistance.

Curved design for better heat dissipation performance, It increase the cooling area that dissipate the heat quickly. Supporting for both Square and Round Power Supply, It is adaptive to most of the square and round shape driver in the market. For square driver,should no more than 72mm wide & 47mm high.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 12000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.97 85-265V AC

Operating Details

Power Ambient Temperature Range
100W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC Black IP54

Options

LED Colours Optics
Warm White, Neutral White, Cold White 25°/45°/60°/100°/120°

Packing Details

Quantity Per Carton Carton Size Carton Weight
4 pcs 55 x 55 x 32 cm 16 kg

Applications

Mechanical Dimensions (Unit mm)

size-150w-led-industrial-lights

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
