Project Description

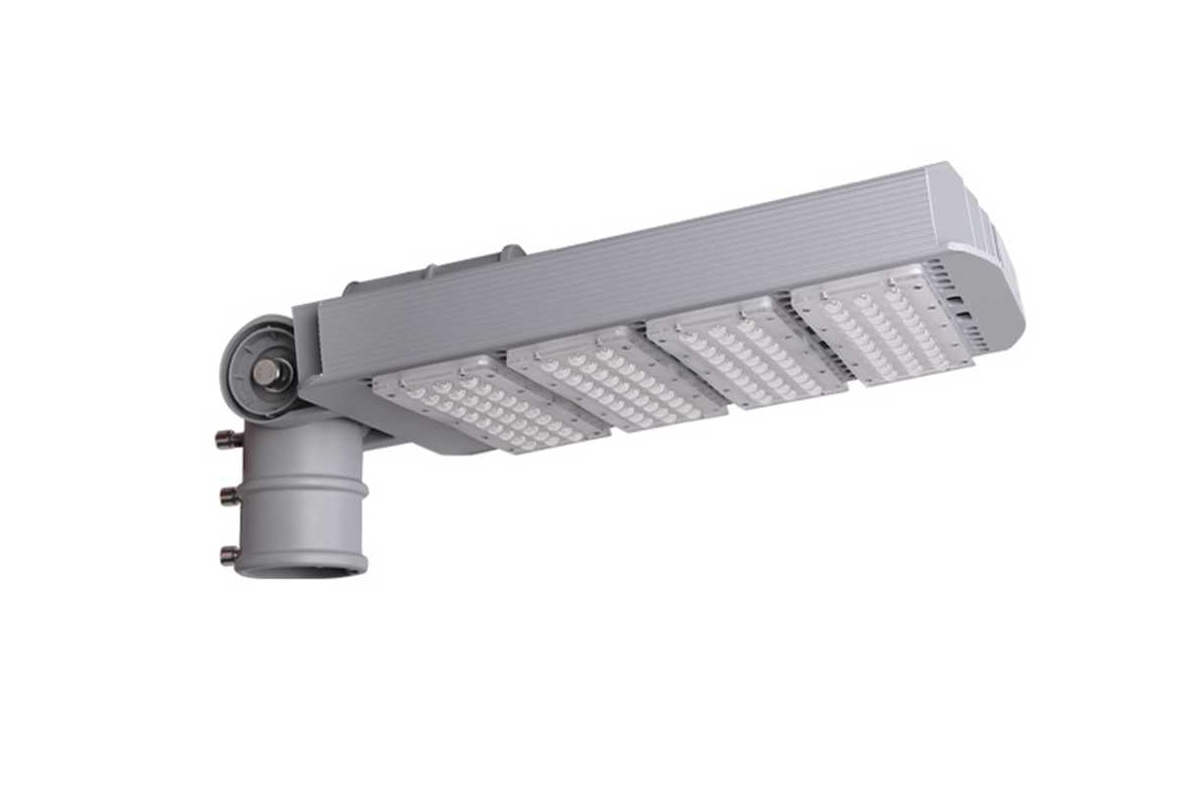

Product Code: NEPTUNE 200W LED Street Light | SL-A200W

Key Features

  • Professionally designed optical lens with beam angle 80×155°
  • Bat wing light distribution curve, light more widely transmitted
  • The bracket is adjustable 90-180 degree, lamp head upward will offer wider lighting to the edge of the road

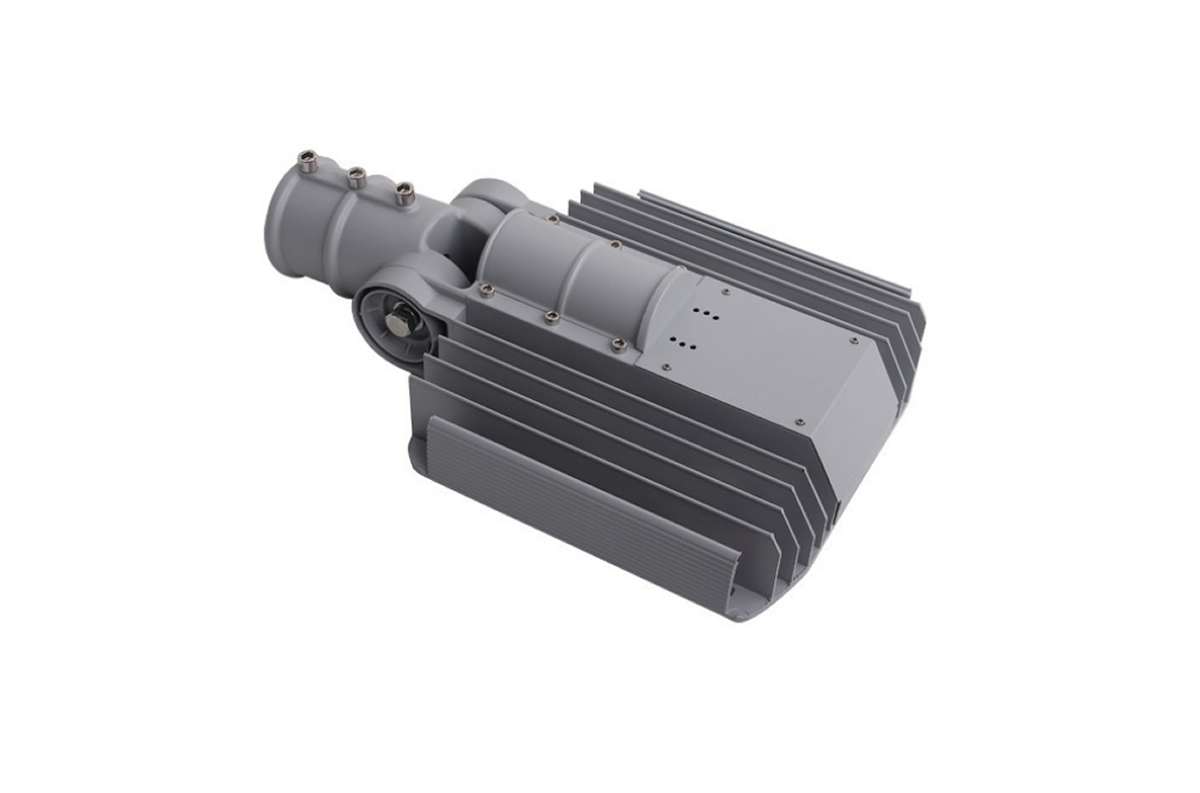

  • Heavy extruded aluminum alloy housing, multi ribs design for more efficient heat dissipation
  • Apply for unique surface treatment technology, well-decorated, easy to install, lower maintenance cost and wide in application.
  • Waterproof IP65

Product Description

Technologically Advanced, low profile all-purpose NEPTUNE LED Street Lights

NEPTUNE LED Street Lights is the alternative to high pressure sodium and metal halide lamp in the street lighting market. AYANIE LED street lamp has the benefit over the traditional HID lamp in aspects of high quality lighting performance, energy saving, installation and maintenance friendly, environmental friendly and long lifespan.

Designed from the ground up as a totally optimized LED street and area lighting system, the NEPTUNE LED Street Light delivers incredible efficiency without sacrificing application performance. Beyond substantial energy savings and reduced maintenance, It achieves greater optical control when compared to traditional cobra head luminaires. The NEPTUNE Series is the better alternative for traditional street and area lighting with quick payback and improved performance.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 24000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.95 85-265 V AC

Operating Details

Power Ambient Temperature Range
200W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC White,Silver,Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 80*155°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 73 x 36 x 20 cm 7.5 kg

Applications

Mechanical Dimensions (Unit mm)

size-200w-led-street-lights

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
