Project Description

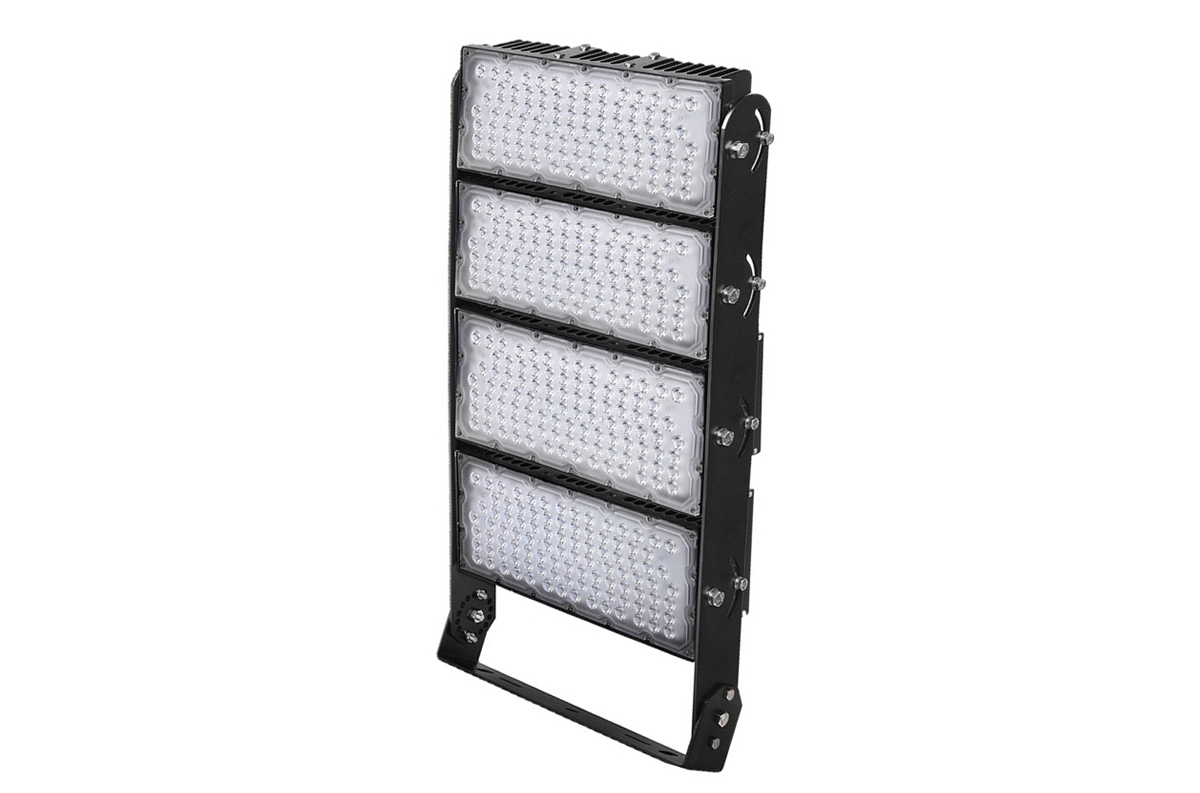

Product Code: MIZAR 1000W LED Stadium Lights | SAS-B1000W

Key Features

  • Heat sink independent design makes ventilation
  • Not only for stadium lighting, but also can use as high-pole lamp
  • Scientifically designed heat dissipater with better cooling effect

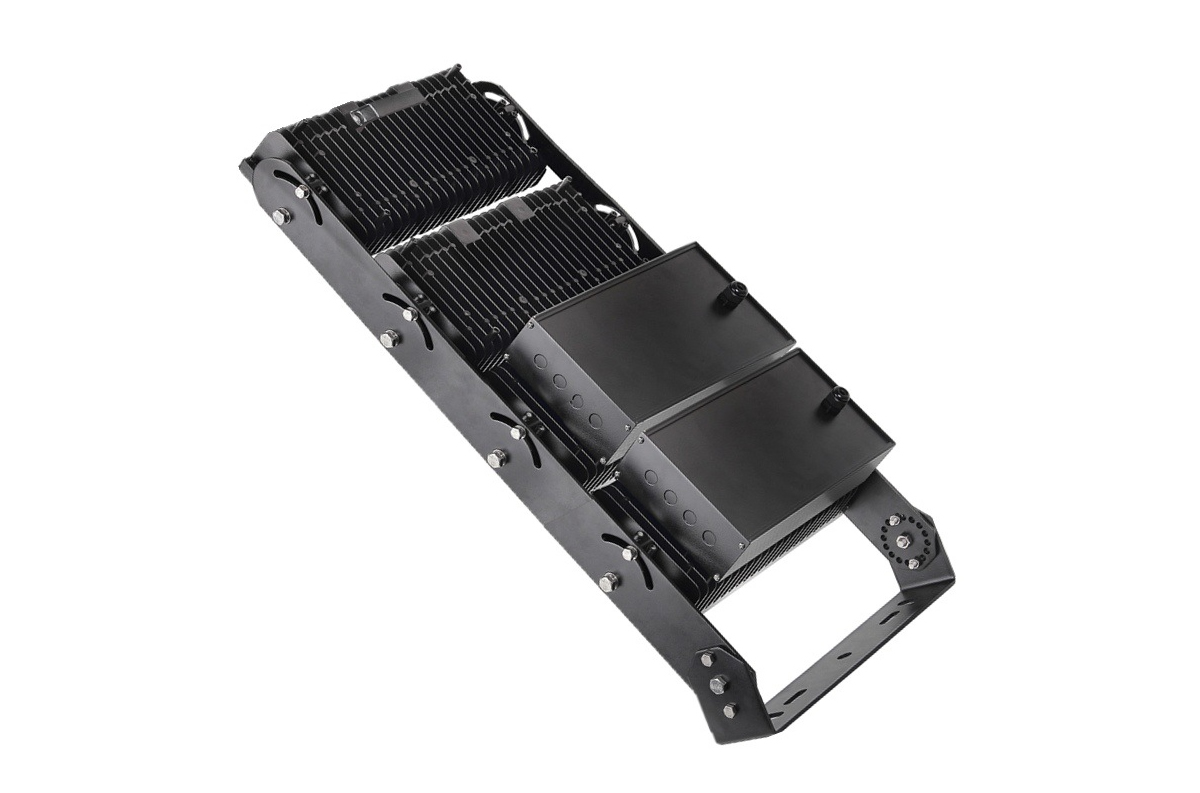

  • Fin style heat sink design makes the heat dissipation perfect
  • 180° adjustable bracket, more flexible
  • Adjustable for each Module, extend more applications
  • Whole lamp output efficiency can reach 140lm/w
  • Two ways of installation, suitable for varies application
  • Driver built-in, more safety

Product Description

Technologically Advanced, low profile all-purpose MIZAR LED Stadium Lights

LED is creating waves in the world of lighting and none more so than with sports illumination. The potential for improving upon current technologies and sports lighting solutions are highlighted below.

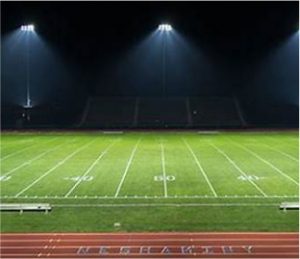

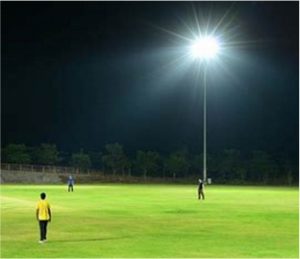

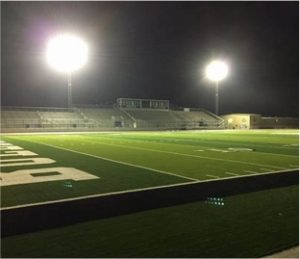

MIZAR LED Stadium Lights are designed to replace 400W to 2000W Metal Halide and HPS stadium lights. We have Qualified LED stadium lights which makes them eligible for rebates through your utility company. Stadium lights have so many applications over and above lighting up outdoor sports areas. They can be used for security lighting, flood lighting and on top of large poles.

Replace your old outdoor area lights, ballpark or stadium lights with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your parking lot, walkways and sports court for safety and aesthetics.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 140000lm PHILIPS SMD5050 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.97 85-265 V AC

Operating Details

Power Ambient Temperature Range
1000W -30 to +60 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 10°, 25°, 60°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 100 x 50 x 25 cm 28 kg

Applications

Mechanical Dimensions (Unit mm)

size-modular-led-sports-area-led-stadium-lights

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
