Project Description

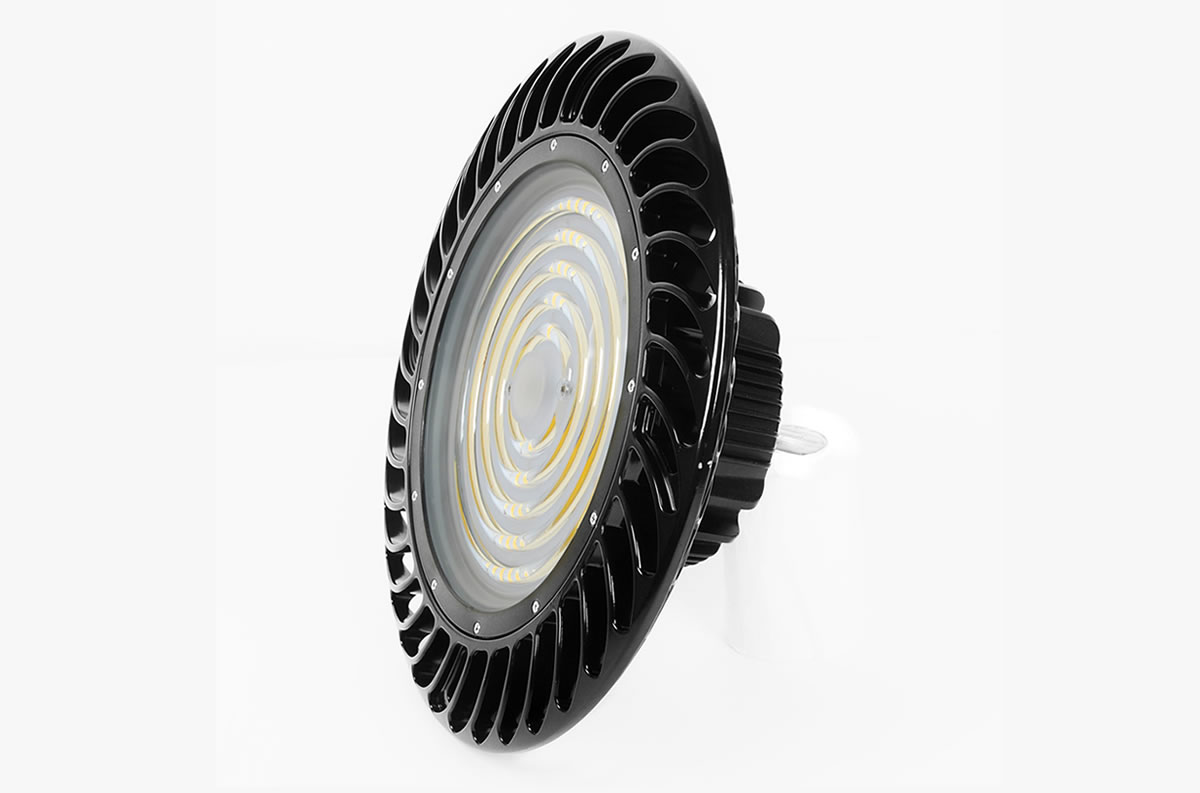

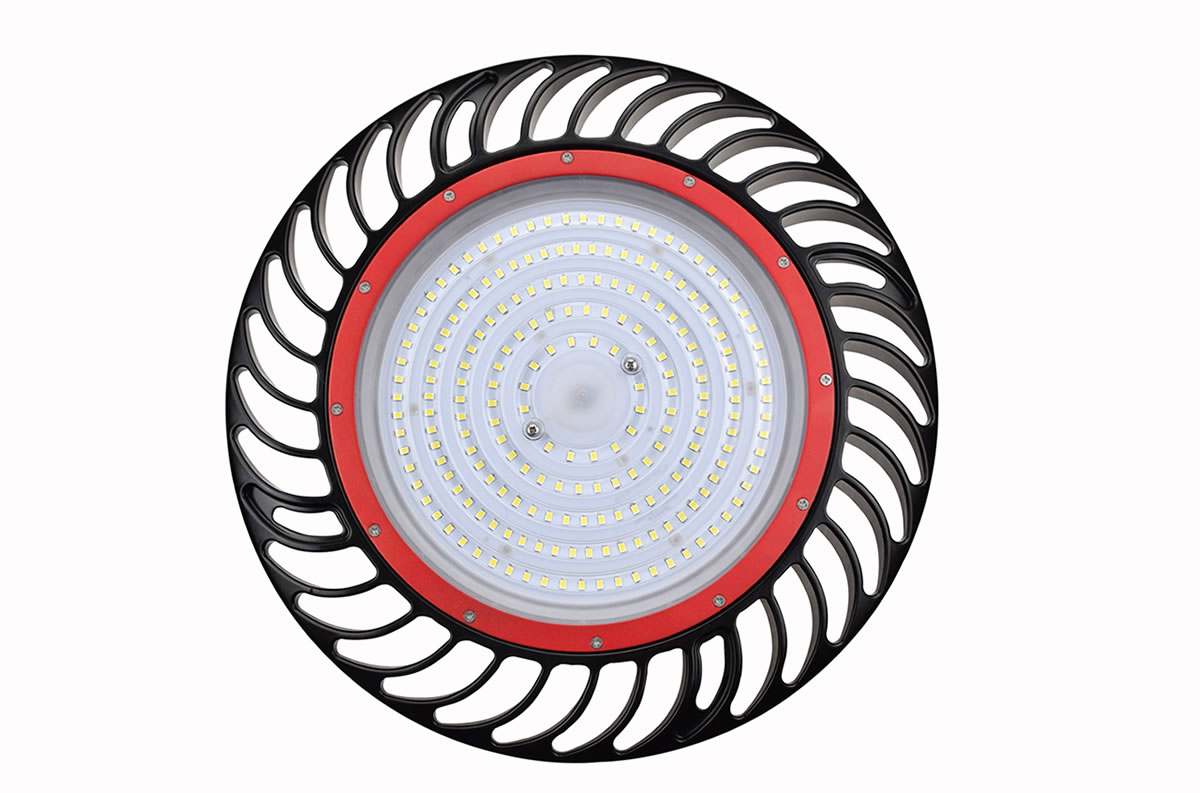

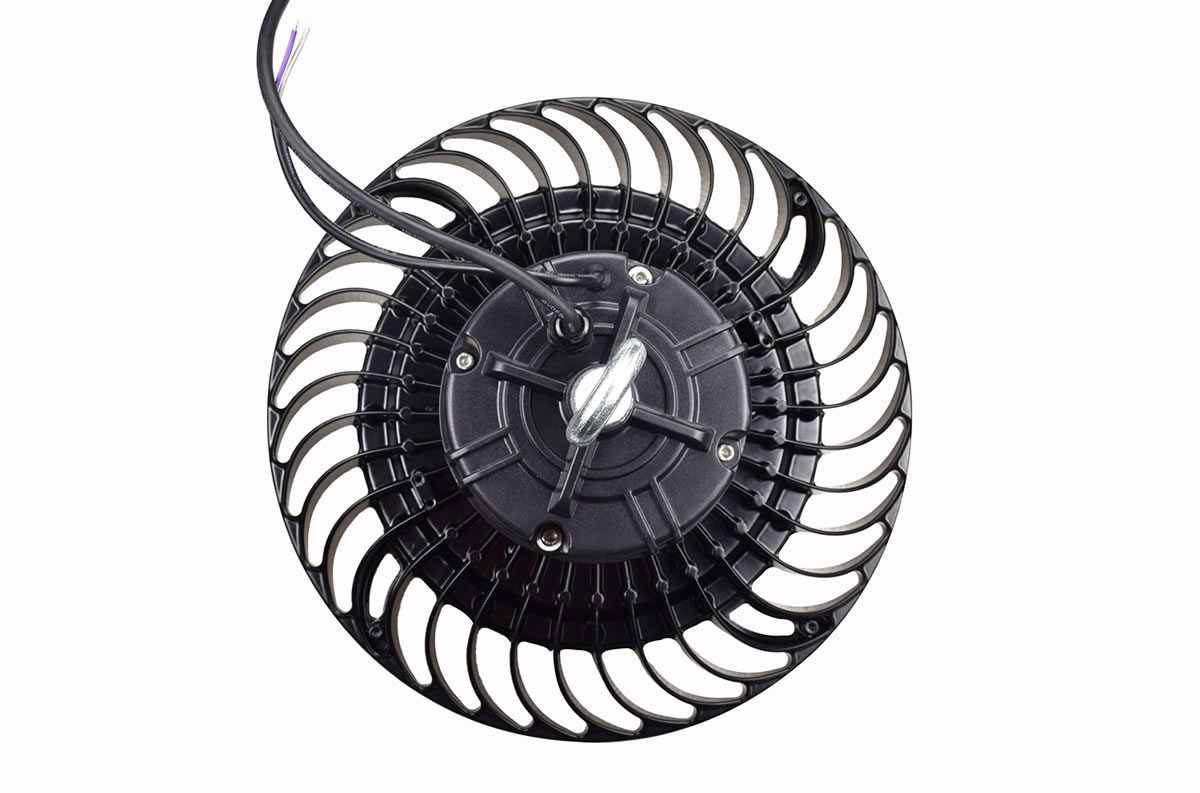

Product Code: SIRIUS 150W UFO LED High Bay | HB-B150W

Key Features

  • Air convection design, much better for heat dissipation
  • Annulus Lens. LED quantity changed according to requirements
  • High Lumen output (180lm/W)
  • Microwave or Infrared sensor optional
  • 180° adjustable bracket
  • Long life time, rated for over 55,000hrs
  • Quality Meanwell Driver
  • Waterproof IP65

Product Description

High performance, energy efficient of SIRIUS LED UFO High Bay adopts high-purity aluminium with anodic oxidation processing on its surface, which looks compact and beautiful. The unique sheet radiator design which effectively generate the heat to radiator and transfer heat by air when the LED is lighting, thereby reducing the operating temperature and ensure the 100000 hrs lifespan of LED.

Light source adopts single imported high power chip integrated style design. This design produces a high thermal conductivity, low luminous decay pure light colour output. The power supply is adopted with high efficiency, high PF power supply control system which equipped with PWM constant current and temperature compensation technology. It applies to wide input voltage (AC 100-277V), which overcomes the damage and unstable operation of the low bays due to the instability of the lighting grid and to avoid eye irritation and fatigue during working.

It reduces the energy consumption by 80% compared with incandescent, 70% compared with mercury and more than 50% compared to metal halide. It uses second distribution curve with lens and reflector to make the light curve symmetric with a circular spot.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 27000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.95 100-277V AC

Operating Details

Power Ambient Temperature Range
150W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 60° / 90° / 120°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 41 x 41 x 21 cm 4.4 kg

Applications

Mechanical Dimensions (Unit mm)

size-180lm-200w-ufo-led-high-bay

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
