Project Description

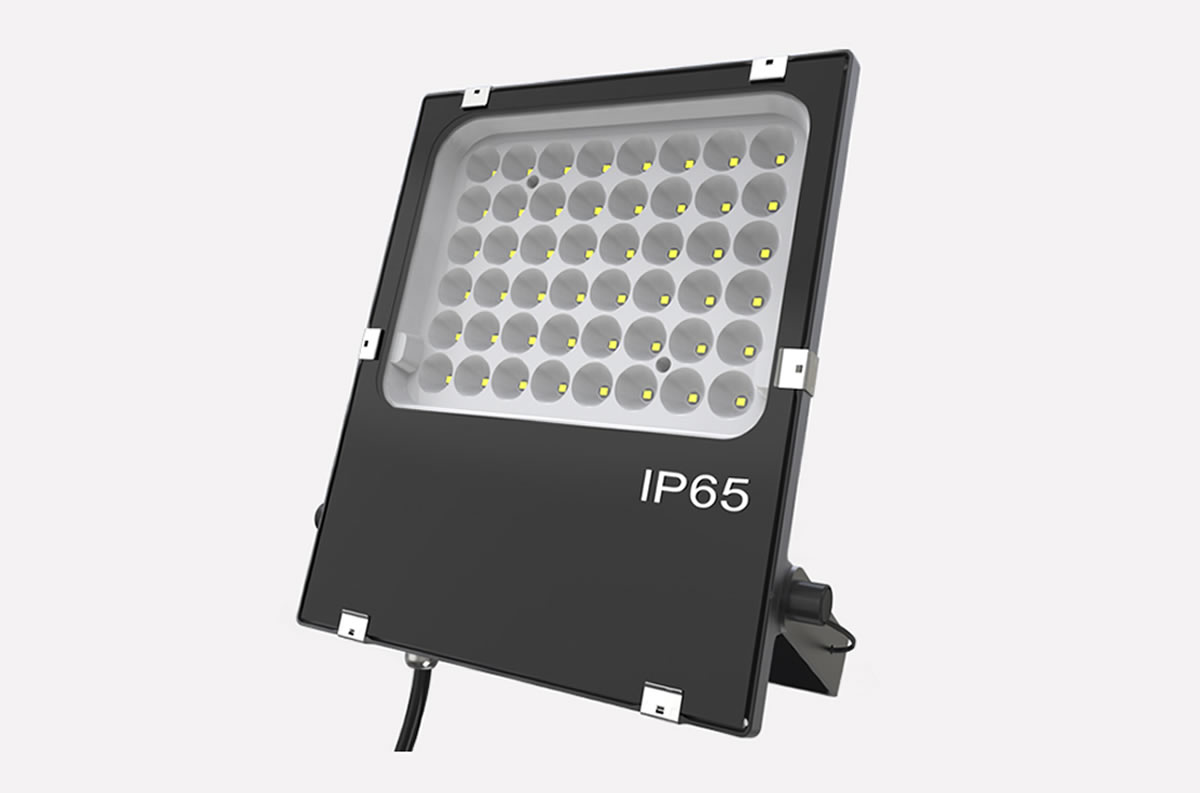

Product Code: JUPITER 100W LED Flood Light | FP-B100W

Key Features

  • Narrow Beam Angle: 8°/15°/35°/60°/90° for option
  • Ultra slim elegance housing design, Environment friendly
  • Integrated design of driver box, reduce the wind resistance
  • Electroplating reflector, high light reflector rate and shining
  • Industrial grate silicone gasket assuring high IP grade

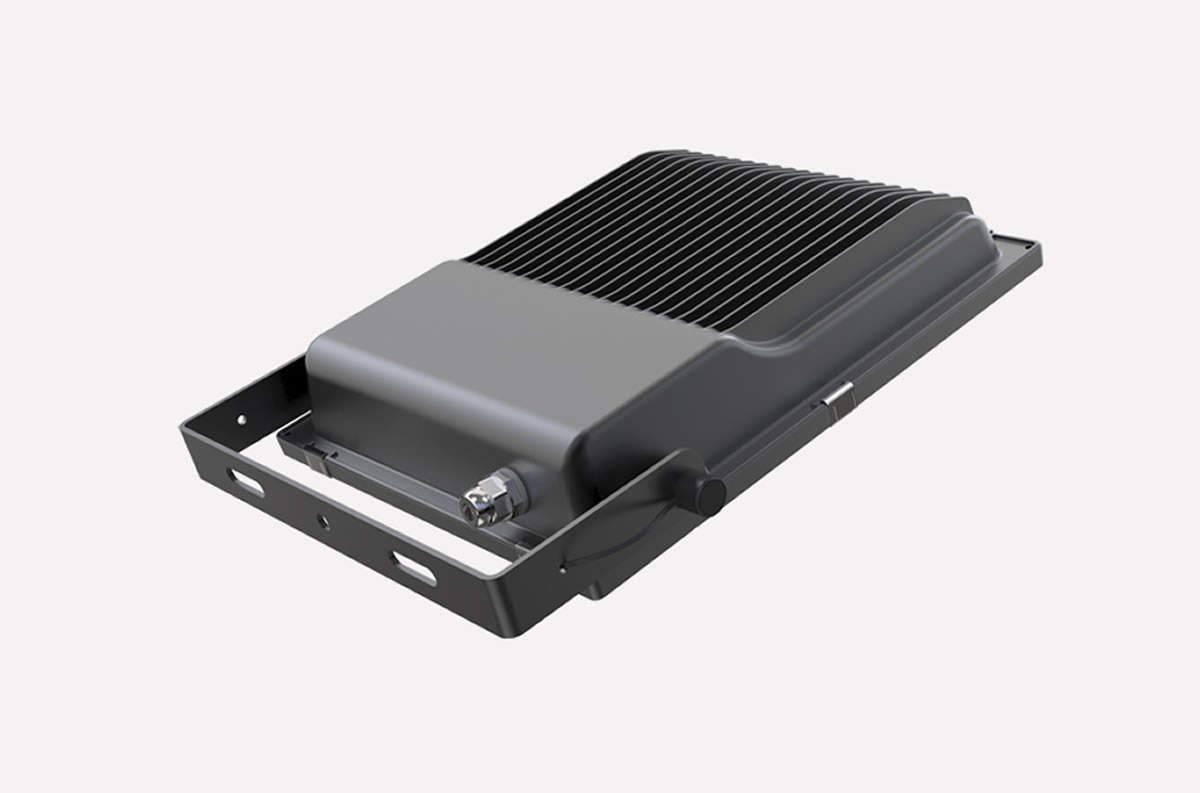

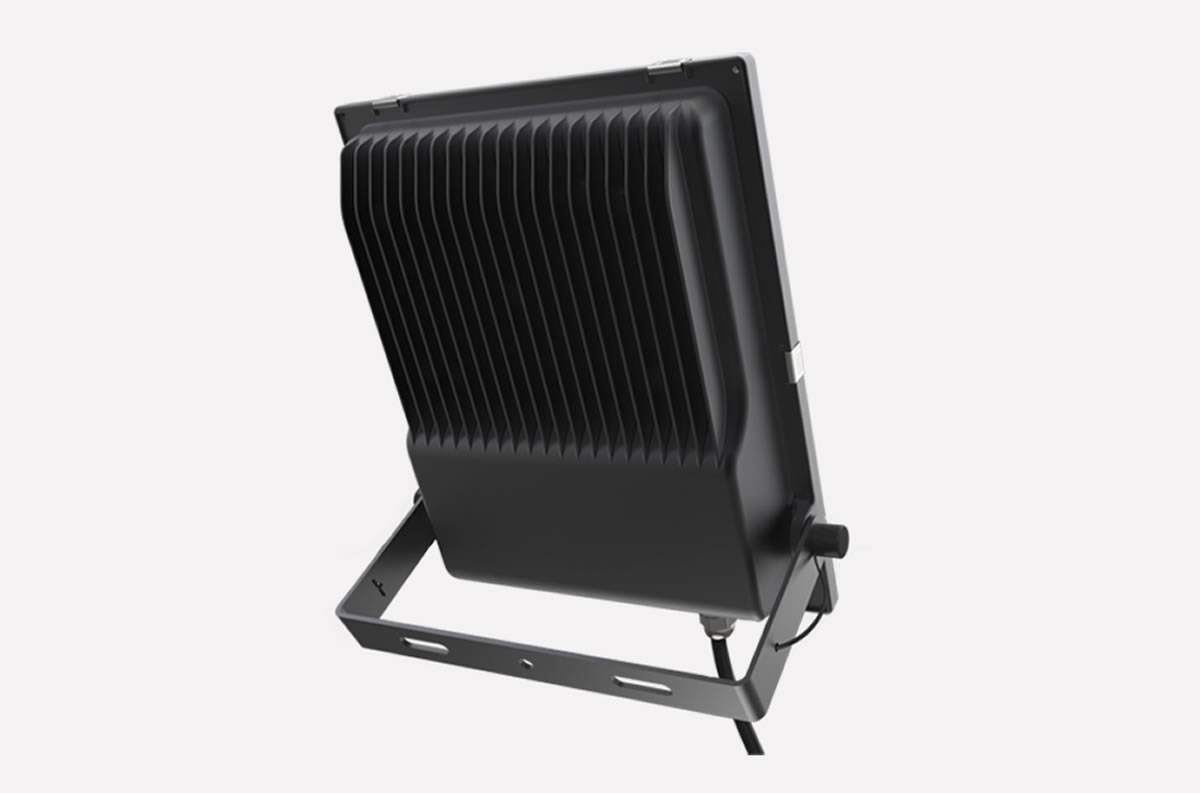

  • 270 degree adjustable brackets, easy for installation and fix
  • Durable tempered glass front
  • Long life time, rated for over 55,000hrs
  • Waterproof IP65

Product Description

JUPITER Flood with narrow beam gives a concentrated light, better for accent lighting

JUPITER LED Flood Light casts a narrow beam of light, This beam is more concentrated and easier to point and control. A floodlight can have a beam spread of up to 120 degrees. It can illuminate a larger amount of space with the same wattage and lumen output as a spotlight

This JUPITER Large outdoor Led flood Light is good for illuminating areas that require a lot of light. This commercial led fixture is heavy duty, slim designed and light weight. But can hold up to high winds and severe weather. Swivel mount option allows you to pole mount or surface mount on buildings.

Typically replacing the Sodium lamp or halogen flood light, the JUPITER LED Floodlight can offer energy savings of up to 90%. It can be used singularly or in groups to provide lighting for applications ranging from recreation area lighting to warehouse lighting, sign lighting, building lighting, car park lighting and perimeter fence lighting.

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 11000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.97 85-265 V AC

Operating Details

Power Ambient Temperature Range
100W -20 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + Tempered Glass Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 8°/15°/35°/60°/90°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 50 x 41 x 16 cm 5 kg

Applications

Mechanical Dimensions (Unit mm)

size-100w-spot-flood-ip65-led-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
