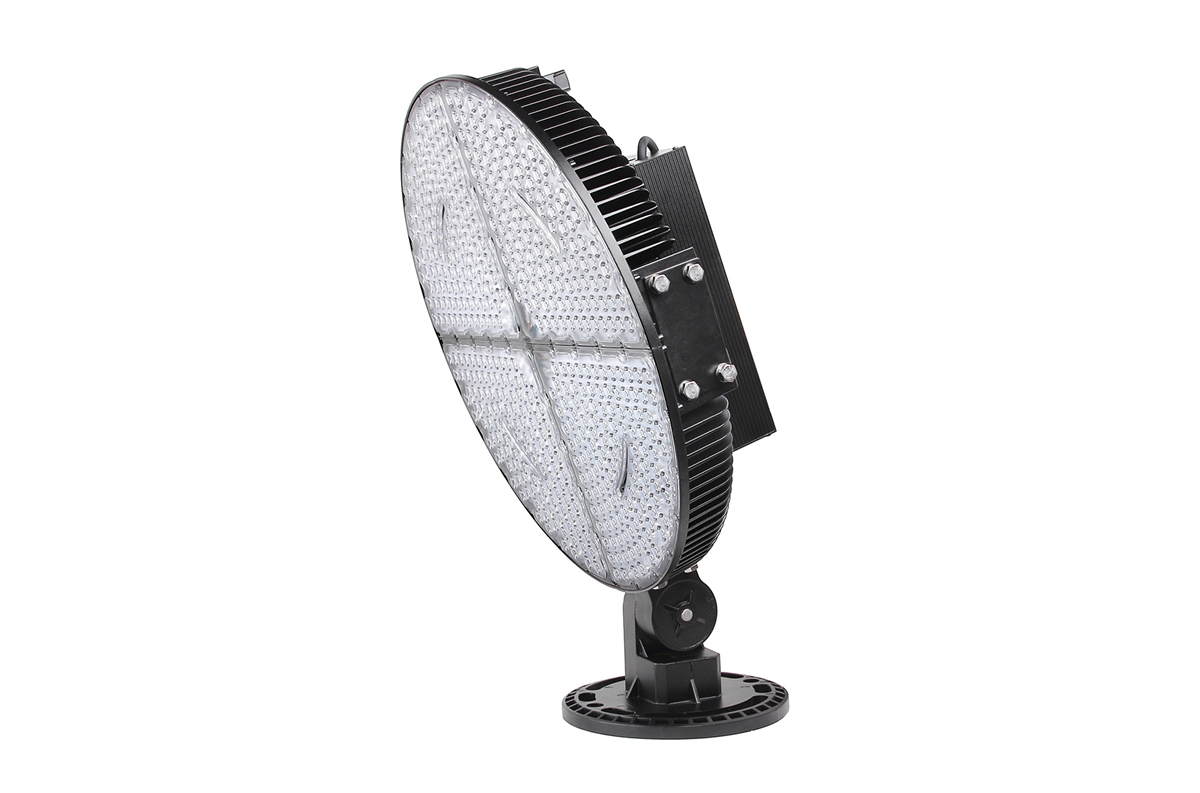

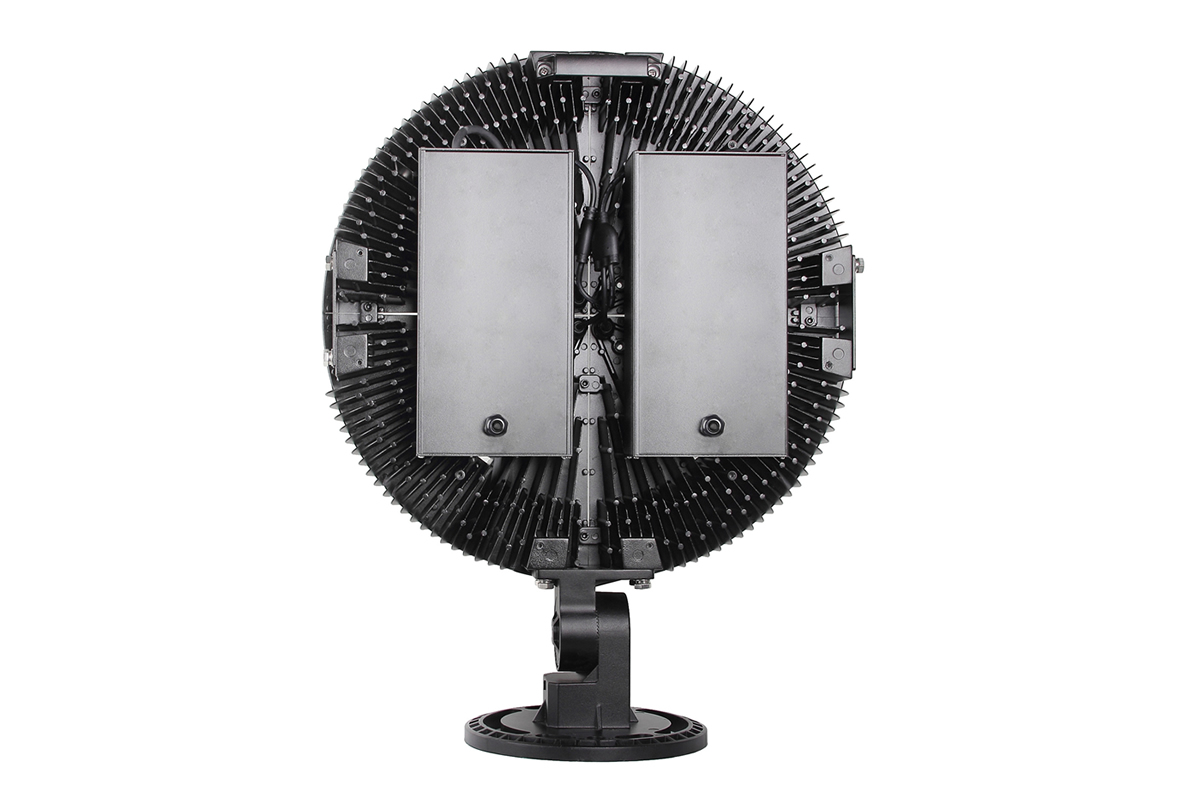

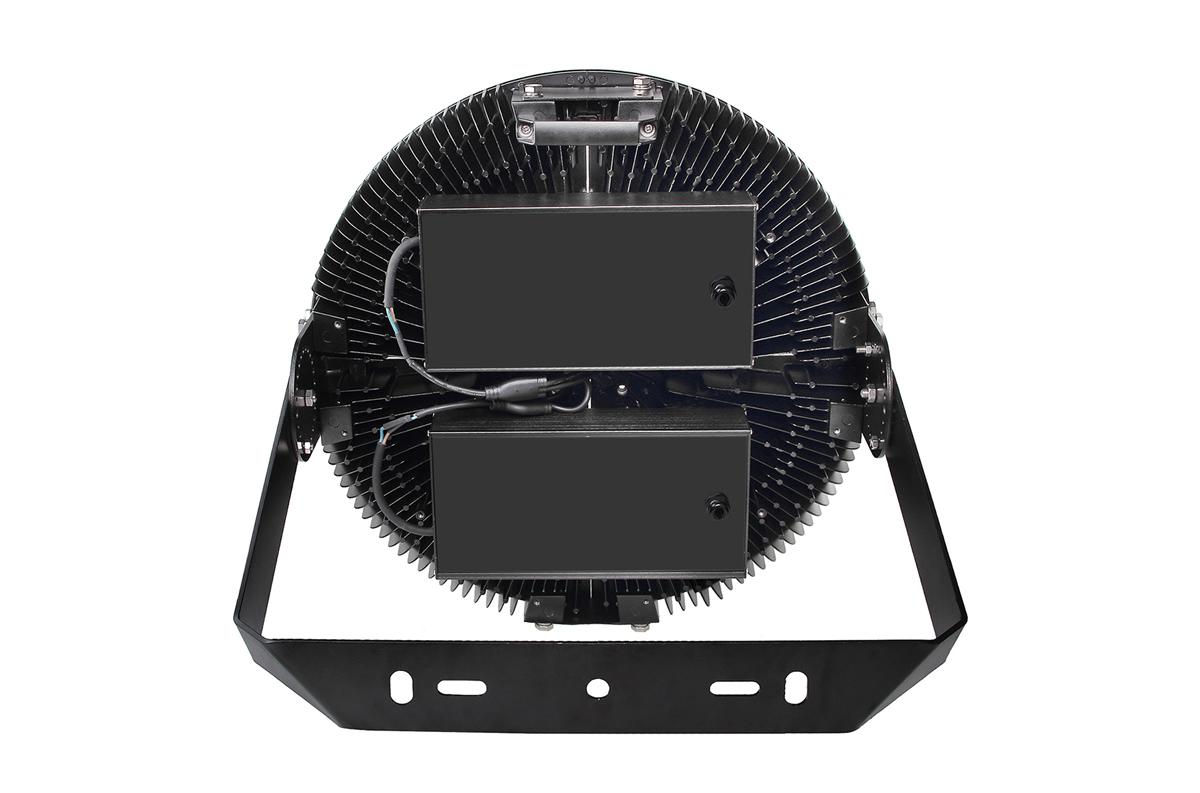

Product Code: ALCOR 600W LED Stadium Lights | SAS-A600W
Key Features
Key Features
- High Impact Resistance IK10
- High Protection Level up to IP66
- Anti 17-level Wind Power
- High Vibration Resistance
- Surge Suppression Protection
- Intelligent Control
- Extraordinary Thermal Management
- High Thermal Conductivity
- Slim and Lightweight
Product Description
Product Description
Technologically Advanced, low profile all-purpose ALCOR LED Stadium Lights
ALCOR LED Stadium Lights – the perfect high efficiency lighting solution for any sport application. The high quality of light emitted from LED sports lighting fixtures allows for an improved fan experience and increased safety. In addition, LEDs offer tremendous energy savings, longer lifespans, and other benefits.
LED Stadium Lights are designed to replace 400W to 2000W Metal Halide and HPS stadium lights. We have Qualified LED stadium lights which makes them eligible for rebates through your utility company. Stadium lights have so many applications over and above lighting up outdoor sports areas. They can be used for security lighting, flood lighting and on top of large poles.
Replace your old outdoor area lights, ballpark or stadium lights with a high efficiency LED area light. Save money and replace bulbs less often with a 100,000 hour rated LED. Fixture is also ideal for new installations. Light up an area of your parking lot, walkways and sports court for safety and aesthetics.
Specification
Lighting Performance
Colour Temperature | Lumen Output | LED | CRI | Minimum Lifetime |
---|---|---|---|---|
3000K, 4000K, 6000K | 84000lm | PHILIPS SMD5050 | >80 | 55,000hrs |
N.B Lumen values quoted on Cold White (6000K)
Input Data
Driver Brand | Power Supply Type | Power Factor | Input Voltage |
---|---|---|---|
Meanwell | Constant Current | >0.95 | 85-265 V AC |
Operating Details
Power | Ambient Temperature Range |
---|---|
600W | -40 to +50 °C |
Physical Details
Material | Finish | Ingress Protection |
---|---|---|
Aluminum + PC | Black | IP65 |
Options
LED Colours | Optics |
---|---|
Warm White, Neutral White, Cold White | 10°, 25°, 40°, 60° |
Packing Details
Quantity Per Carton | Carton Size | Carton Weight |
---|---|---|
1 pcs | 165 x 30 x 45 cm | 19.5 kg |
Mechanical Dimensions (Unit mm)
Available Colours
3000K
4000K
6000K
