Project Description

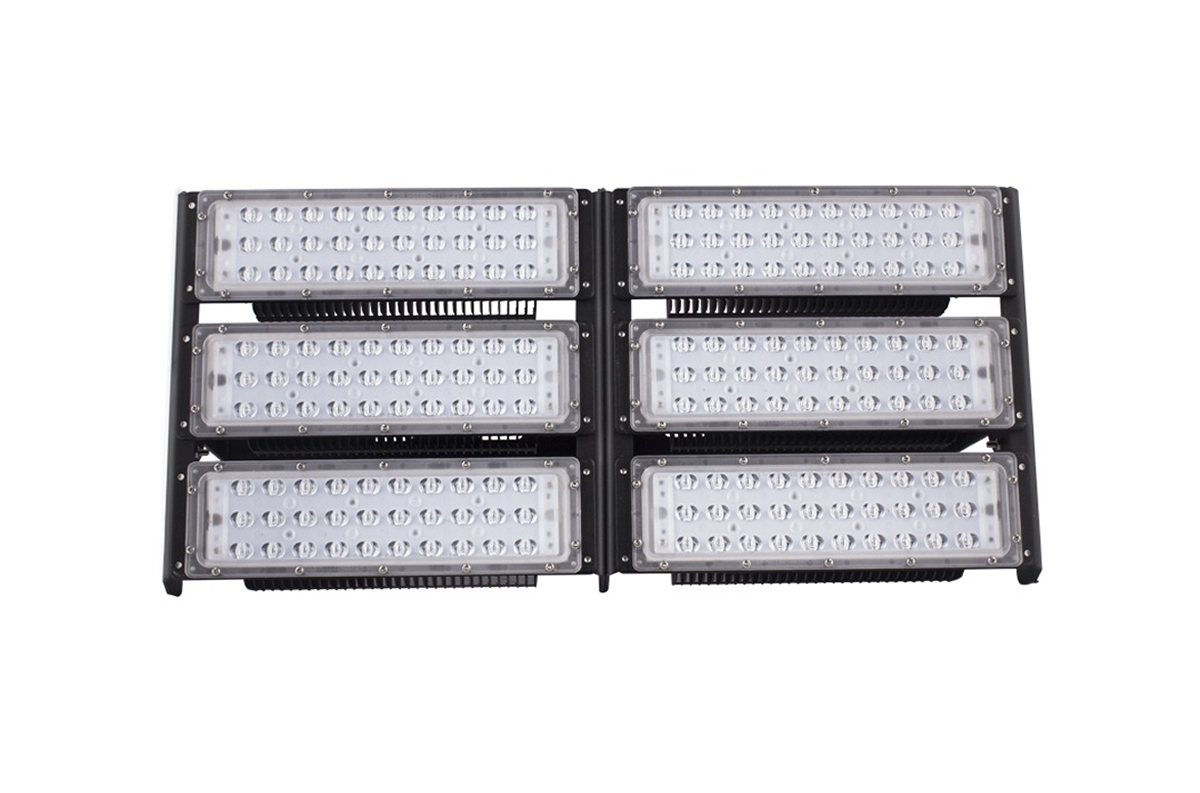

Product Code: MERCURY 300W LED Tunnel Light | TL-F300W

Key Features

  • Modular style design, easy to assemble, replace and repair

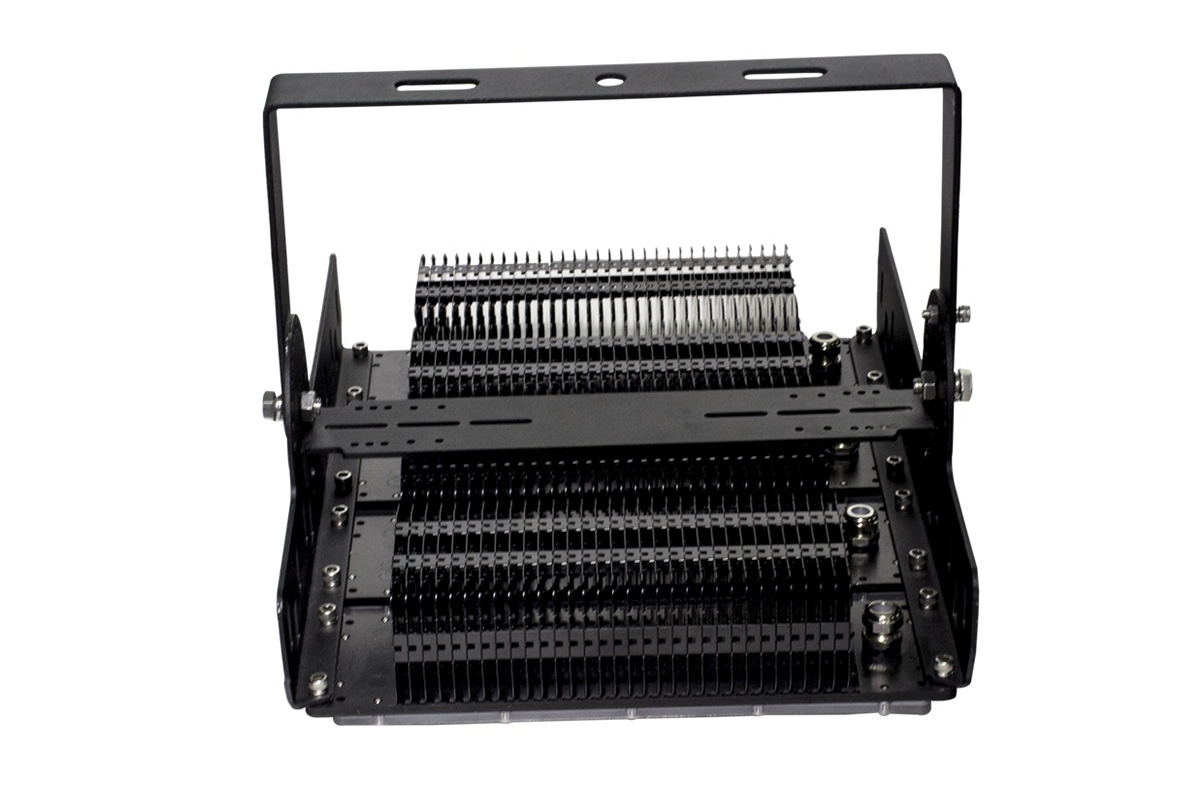

  • With Aluminum fins heatsink, increasing heat sinking area
  • Integrated stamping 1060 Aluminum, high thermal conductivity
  • All screw&nuts are made of #304 stainless steel, keep it stable
  • Adjustable bracket with holes meet different lighting application
  • Lens has high light transmittance, flame retardant, anti abrasion
  • UV-proof, provide excellent light distribution
  • High quality level waterproof connectors
  • Waterproof IP65

Product Description

Cutting-edge optical design and leading-edge performance Mercury LED Tunnel light

MERCURY LED Tunnel light offers superior brightness with high quality Philips LEDs. MERCURY LED Tunnel light uses high quality components with mounted Meanwell drivers and a thick robust housing, giving increased efficiency and long life.

High quality Meanwell switchable drivers are mounted on the light as standard. 0-10V Dimmable drivers are also available if you wish to control the lighting levels at various points of the tunnel. Other Meanwell driver options are available which compensate for voltage drop if you wish to mount these in one place for ease of maintenance.

Applications include tunnel lighting, architectural lighting, landscape lighting, garden lighting, factory and warehouse lighting, airports, bus station lighting, train station lighting, play ground lighting, outdoor sports court lighting (basketball courts, football fields, tennis courts etc.).

Specification

Lighting Performance

Colour Temperature Lumen Output LED CRI Minimum Lifetime
3000K, 4000K, 6000K 33000lm PHILIPS SMD3030 >80 55,000hrs

N.B Lumen values quoted on Cold White (6000K)

Input Data

Driver Brand Power Supply Type Power Factor Input Voltage
Meanwell Constant Current >0.95 85-265 V AC

Operating Details

Power Ambient Temperature Range
300W -40 to +50 °C

Physical Details

Material Finish Ingress Protection
Aluminum + PC White, Silver, Black IP65

Options

LED Colours Optics
Warm White, Neutral White, Cold White 60° / 90° / 60*150°

Packing Details

Quantity Per Carton Carton Size Carton Weight
1 pcs 64 x 32 x 16 cm 10.5 kg

Applications

Mechanical Dimensions (Unit mm)

size-300w-rgb-led-area-lighting

Available Colours

3000K

4000K

6000K

Installation Options

Control Options

Certification

Downloads

Ingress Protection
